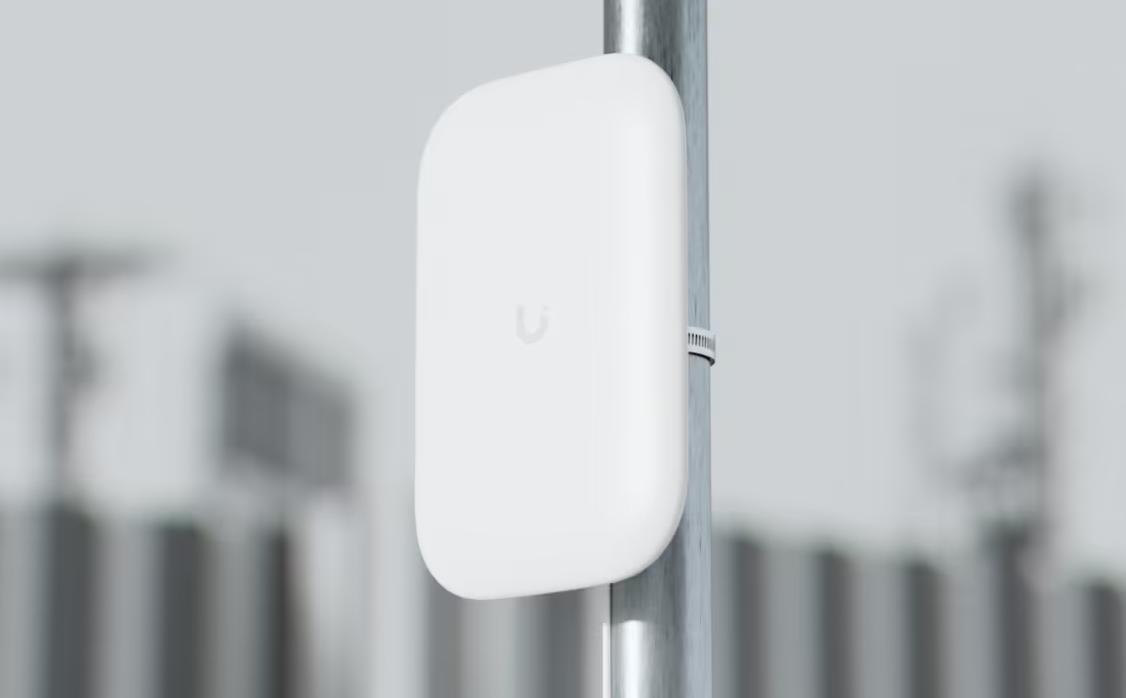

The Sideline Ultra antenna offers improved performance and durability than the previous sideline iPad antenna.
Step 1: Connect the antennas to the router and POE injector
What if I have don't have a POE Injector and I have the 2-part iPad antenna with Booster panel?

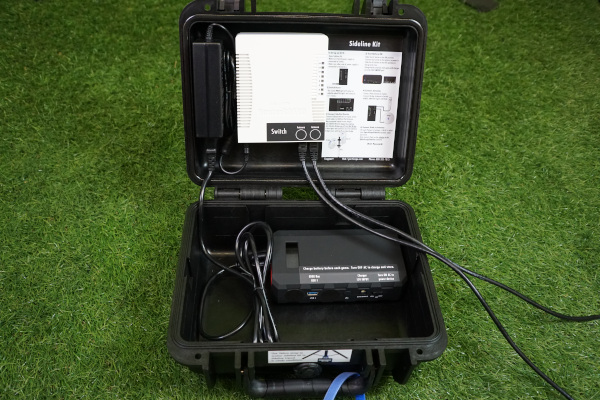

Simply connect the black Ethernet cables from both antennas into the sideline router, into the ports labeled "Antenna." They are interchangeable, so you can plug either antenna into those ports. Then skip to Step 4.

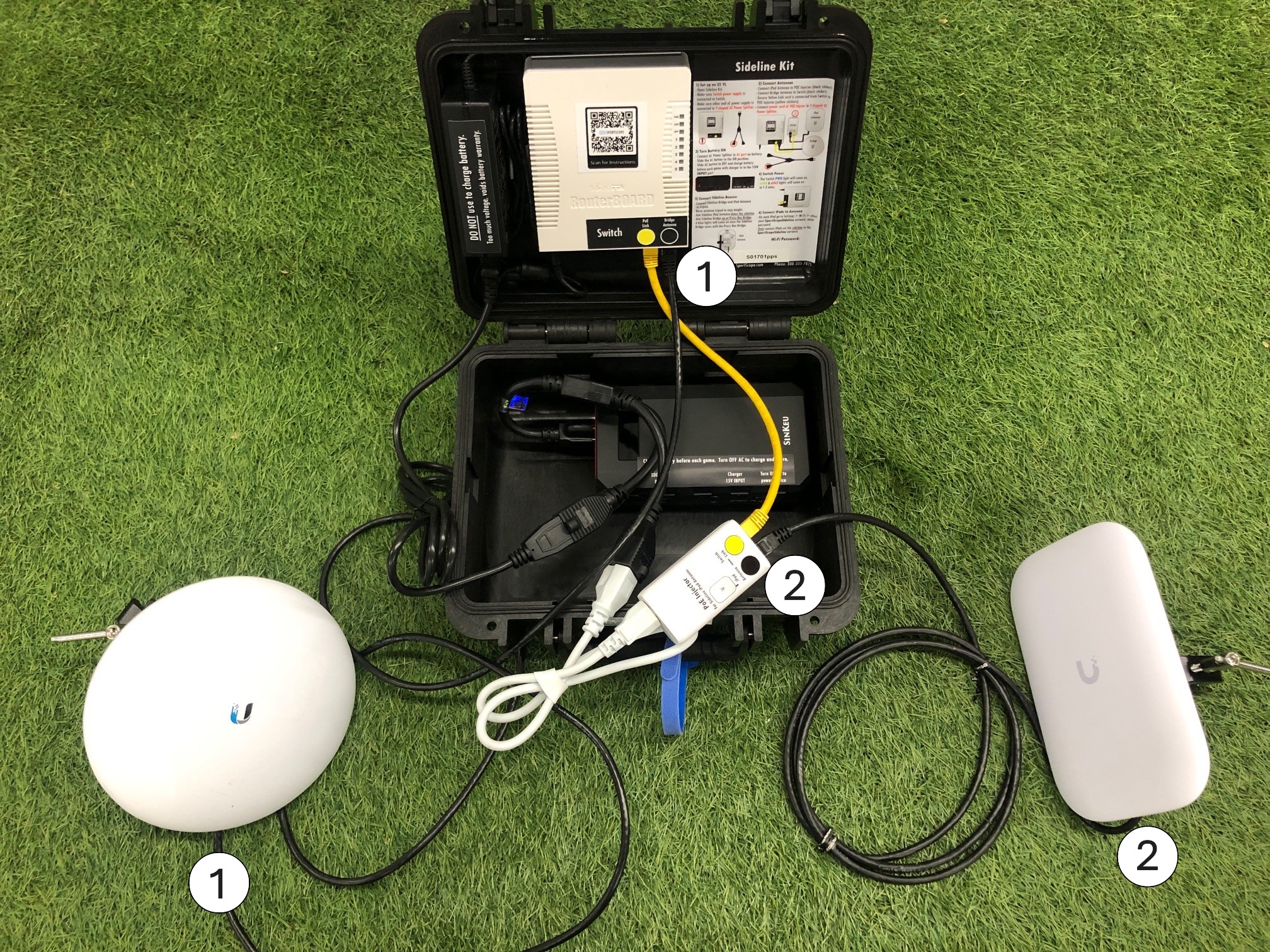

(1) Connect the round Sideline Bridge antenna directly into the Switch in the black labeled port: Bridge Antenna (2) The iPad Antenna must plug into the POE injector in the black labeled port: iPad Antenna. As shown below:

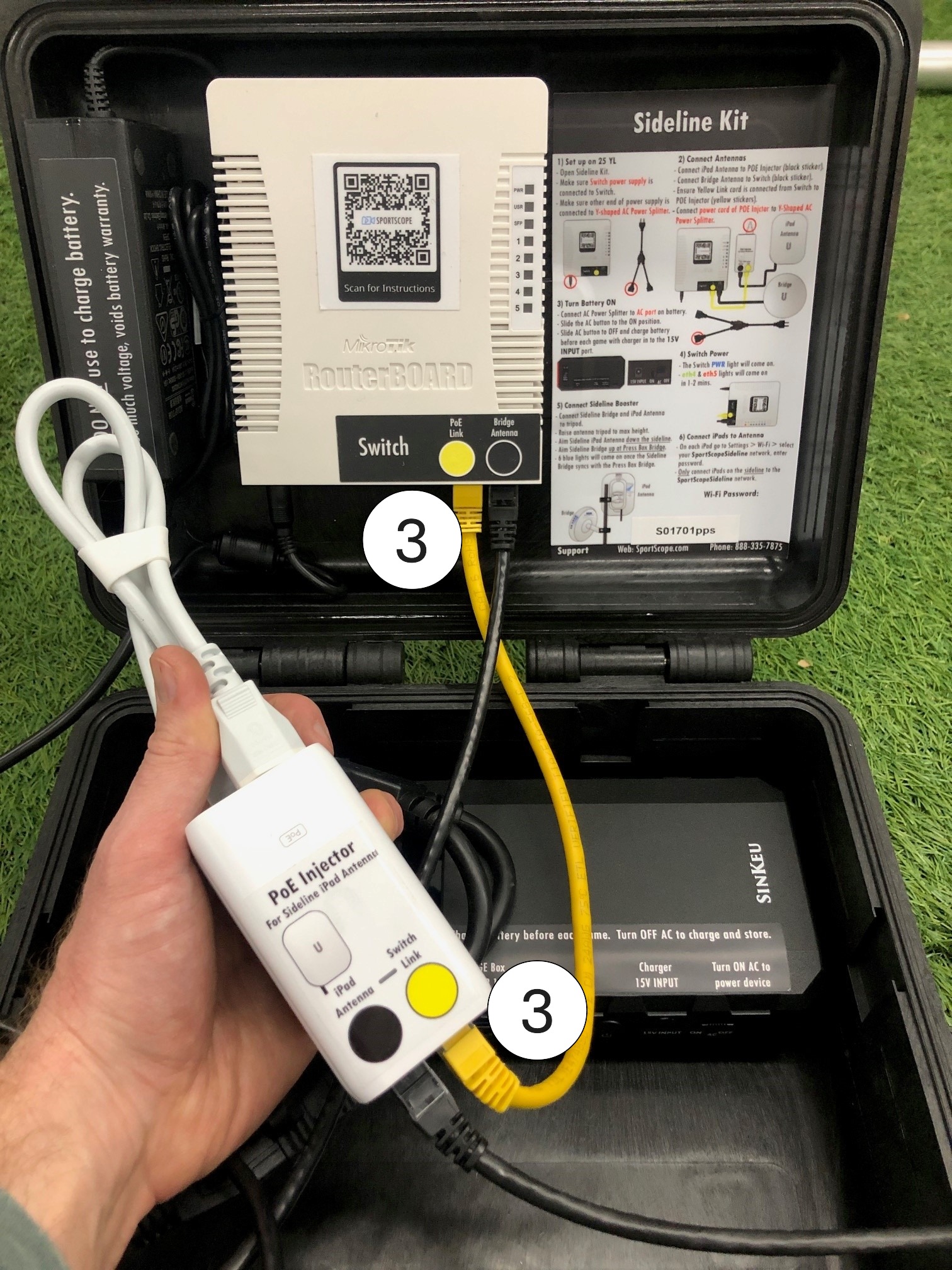

(3) Make sure that the short yellow "POE Data Link" ethernet cord is connected from the yellow Switch Link port on the POE injector to the yellow POE Link port on the Switch:

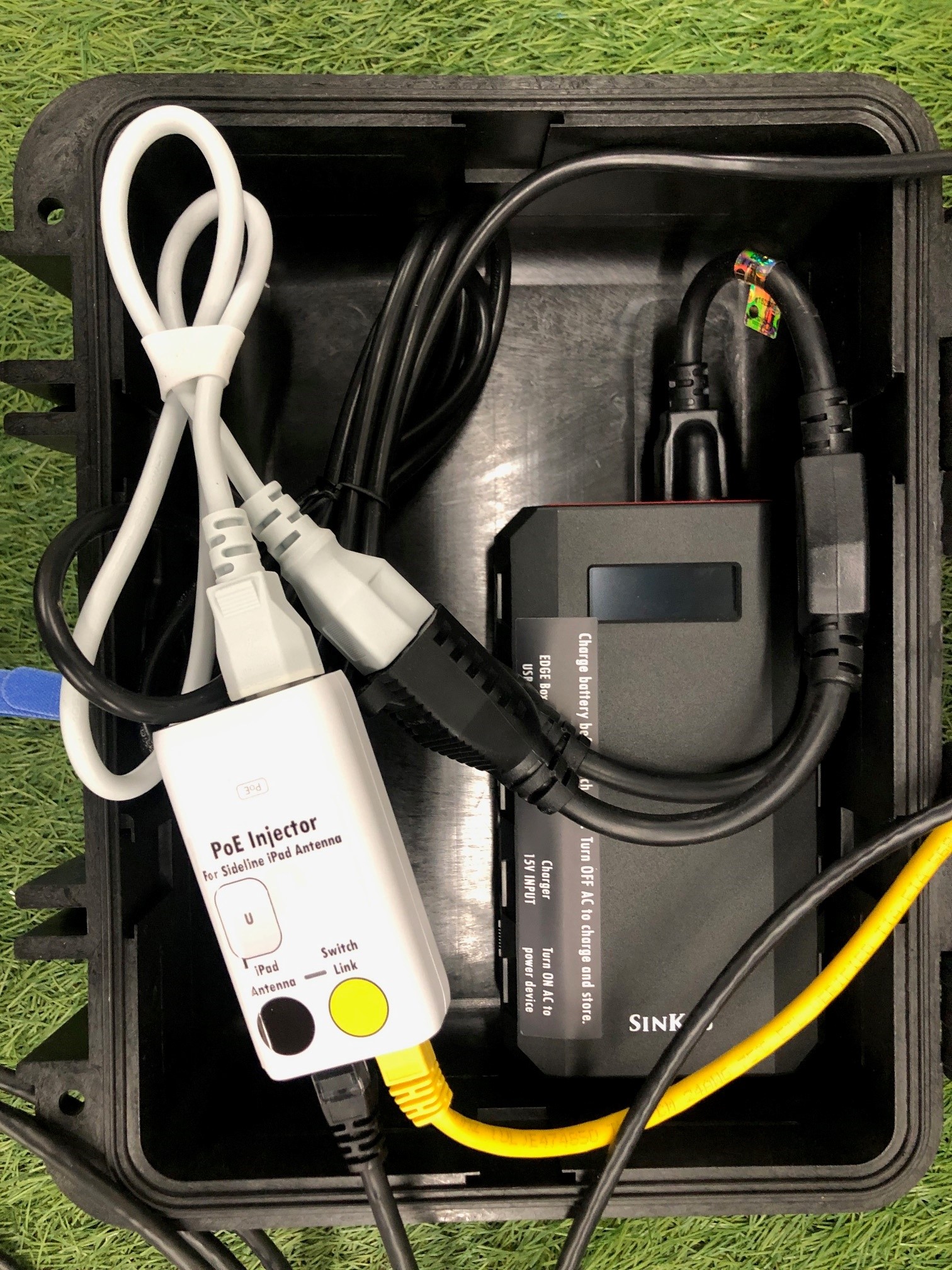

Then ensure that both the Switch and POE injector power cords are connected to the Y-splitter Power adapter and that the adapter is plugged into the AC port of the battery:
