How to Set Up the Focus Compatibility Kit

Using the Focus Compatibility Kit with EDGE Replay

Step 1: Connect the Hudl Focus to the Router in your Compatibility Kit

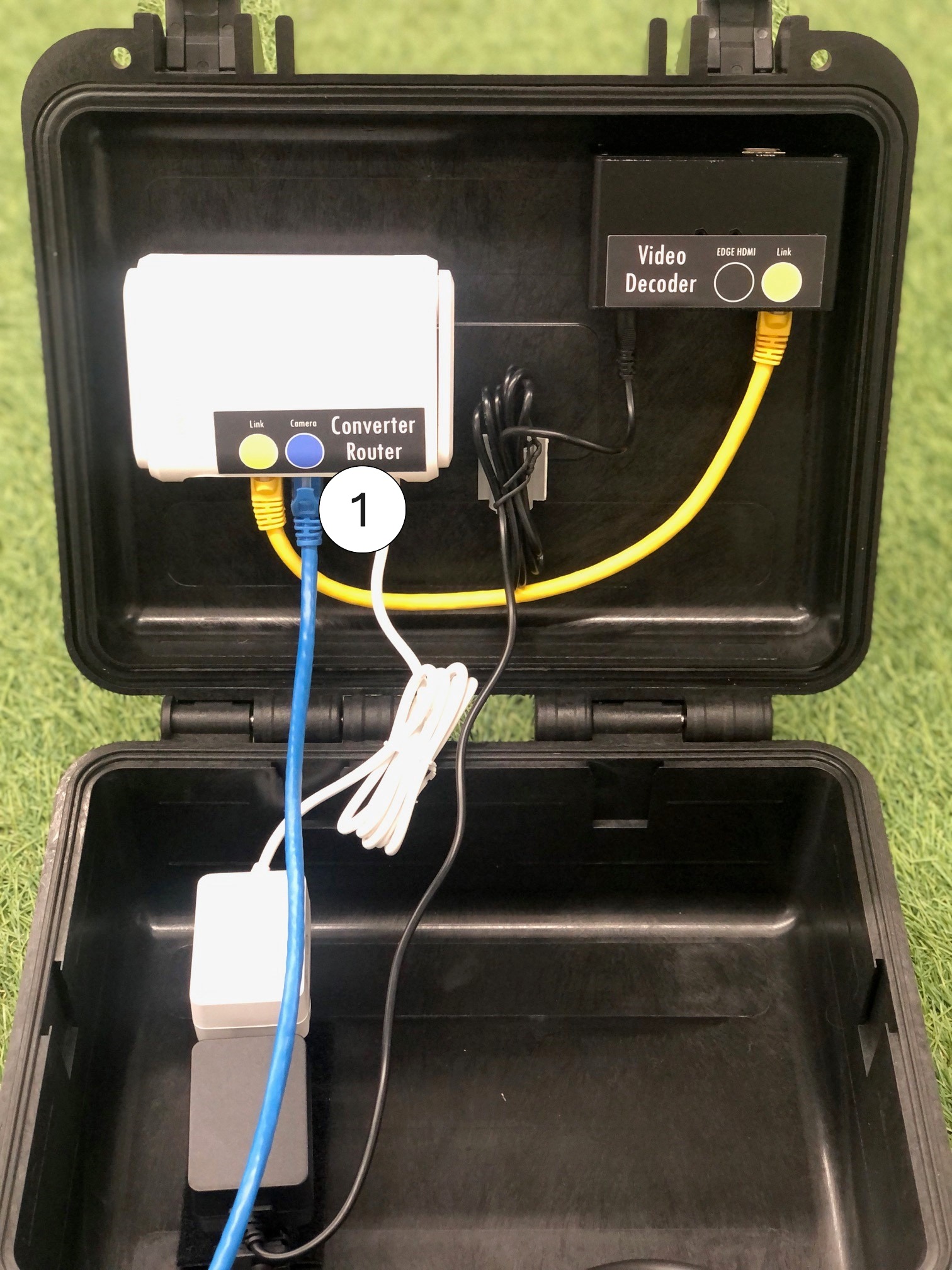

Connect a long ethernet cable (included in the kit) to the blue color-coded port on the Converter Router labeled: "Camera"
Do NOT connect to the WAN port on the very left.

Connect the other end of the long ethernet cable to the Accessory Port in your Hudl Focus (pointed to below)

Step 2: Plug HDMI into Replay

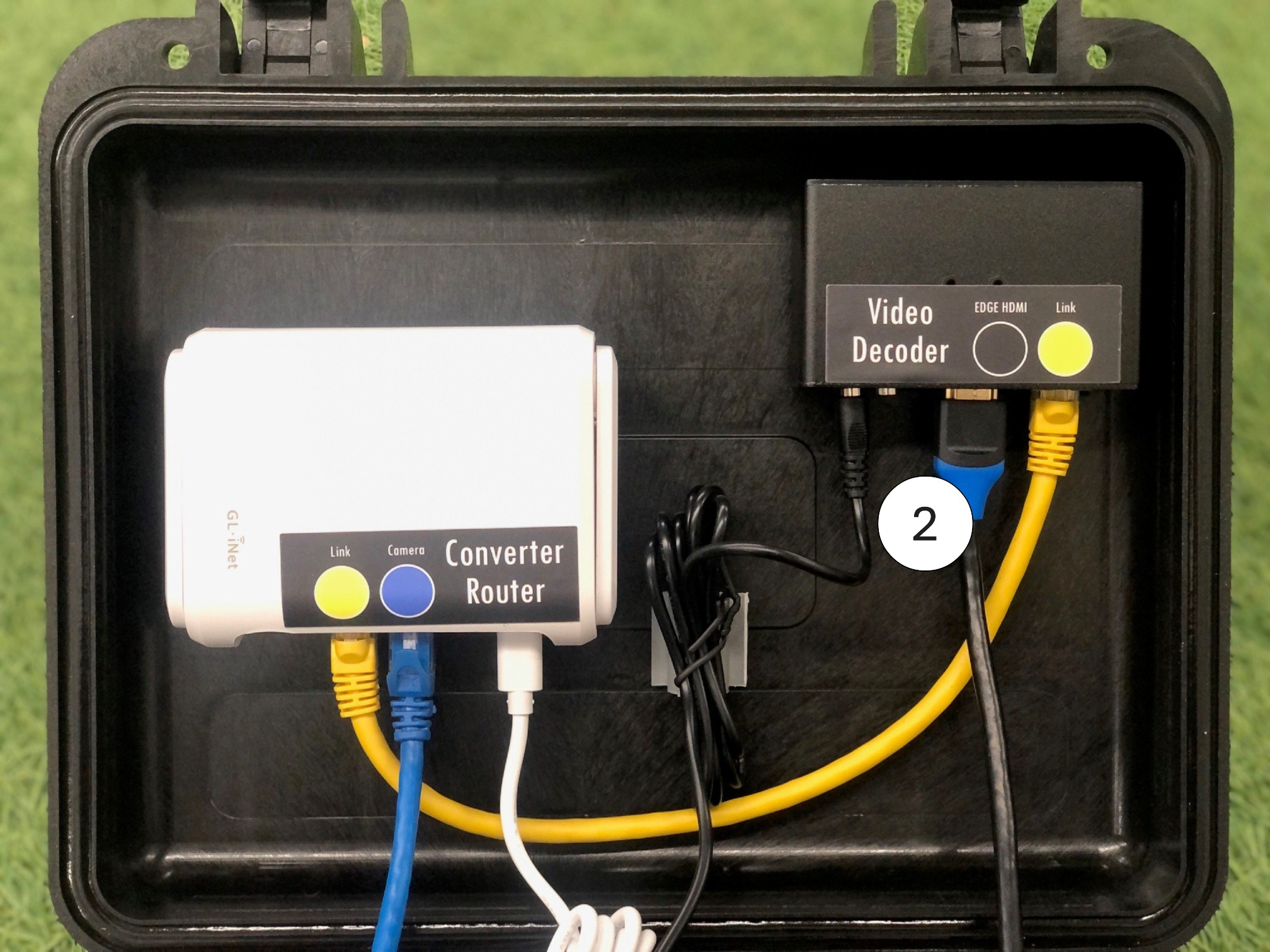

Connect the 6-ft HDMI cable to the HDMI port on the Video Decoder

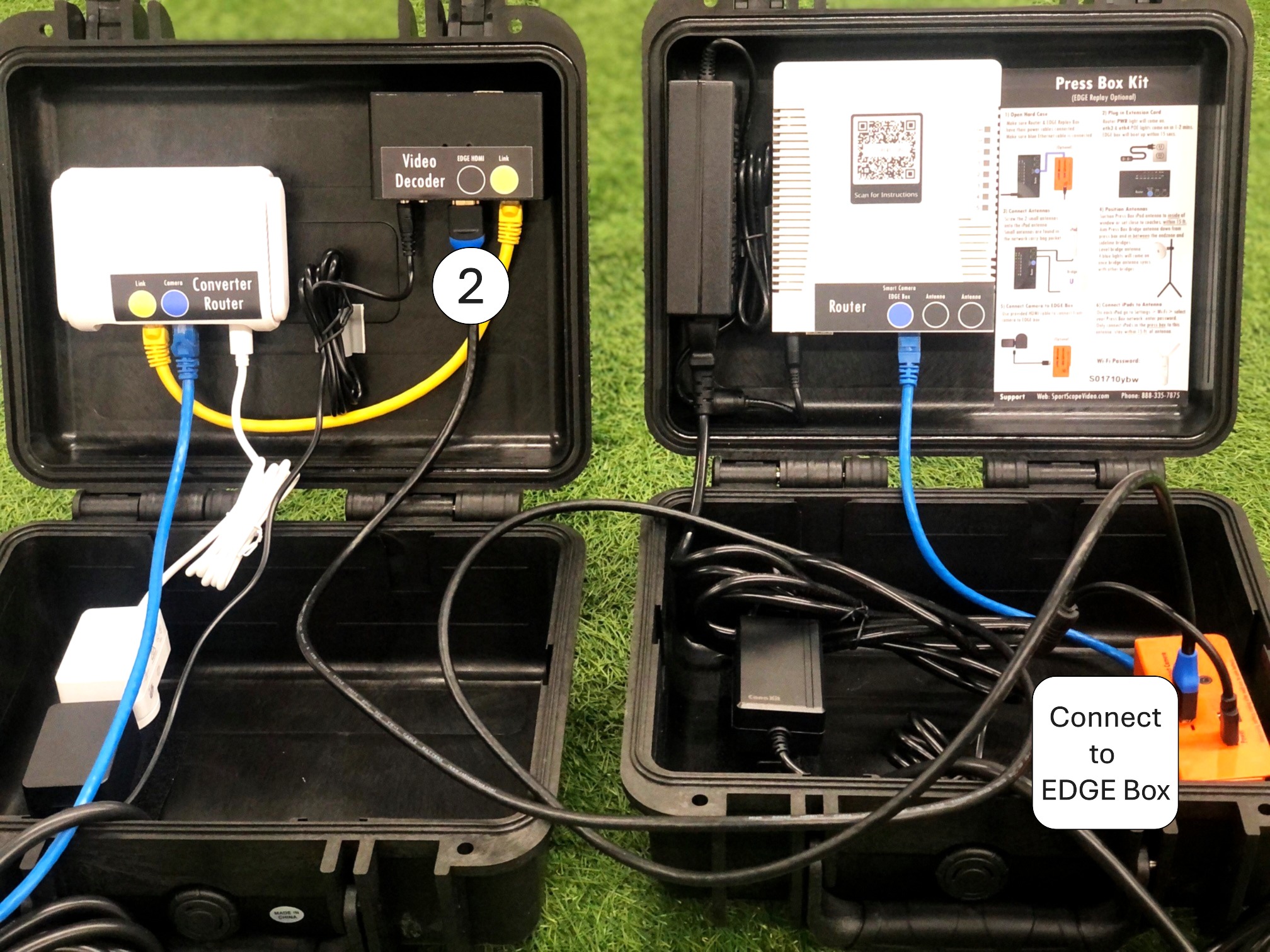

and the other end to the “Connect Camera” port on your EDGE Replay box

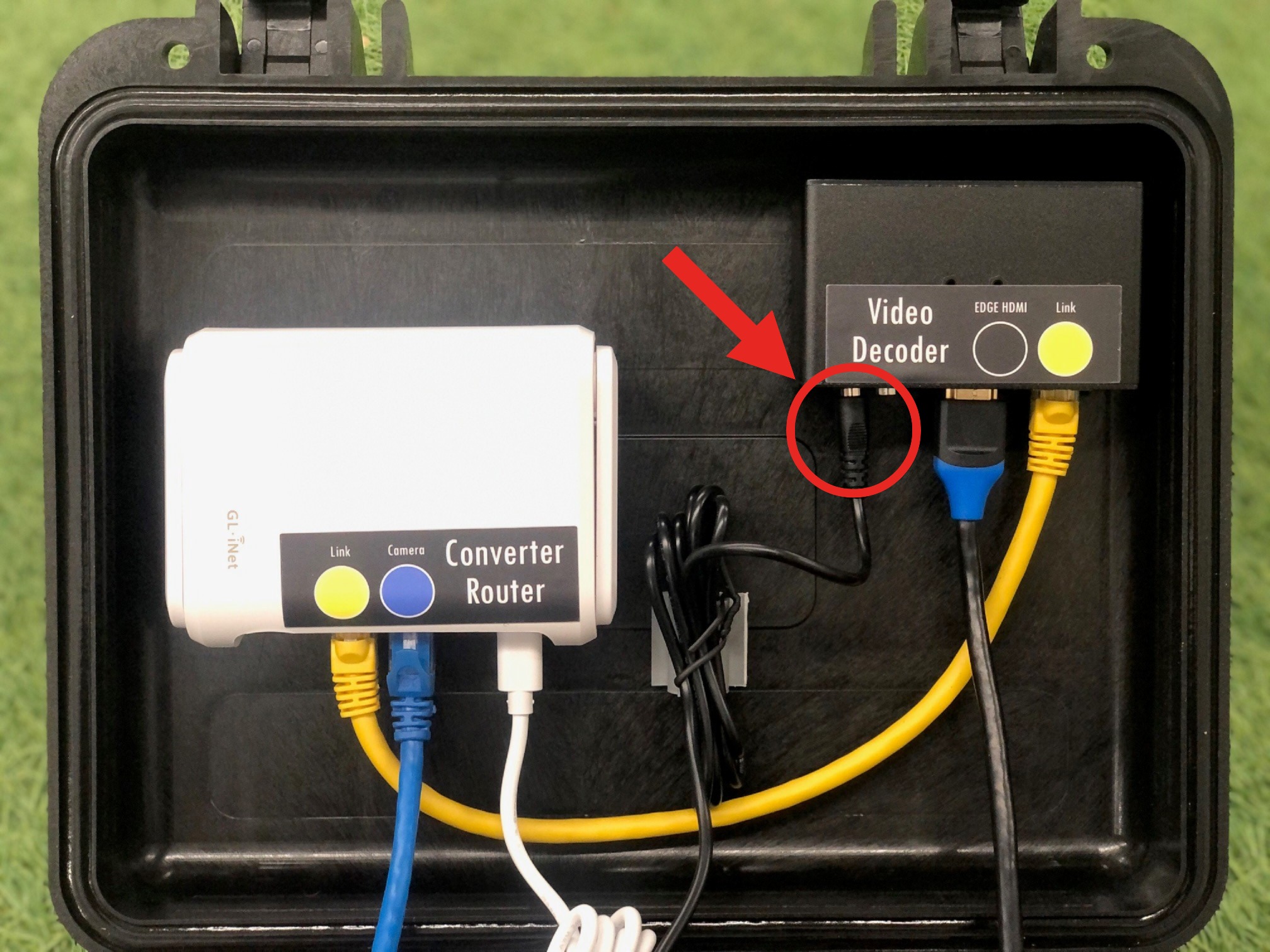

Step 3: Make sure both devices have power

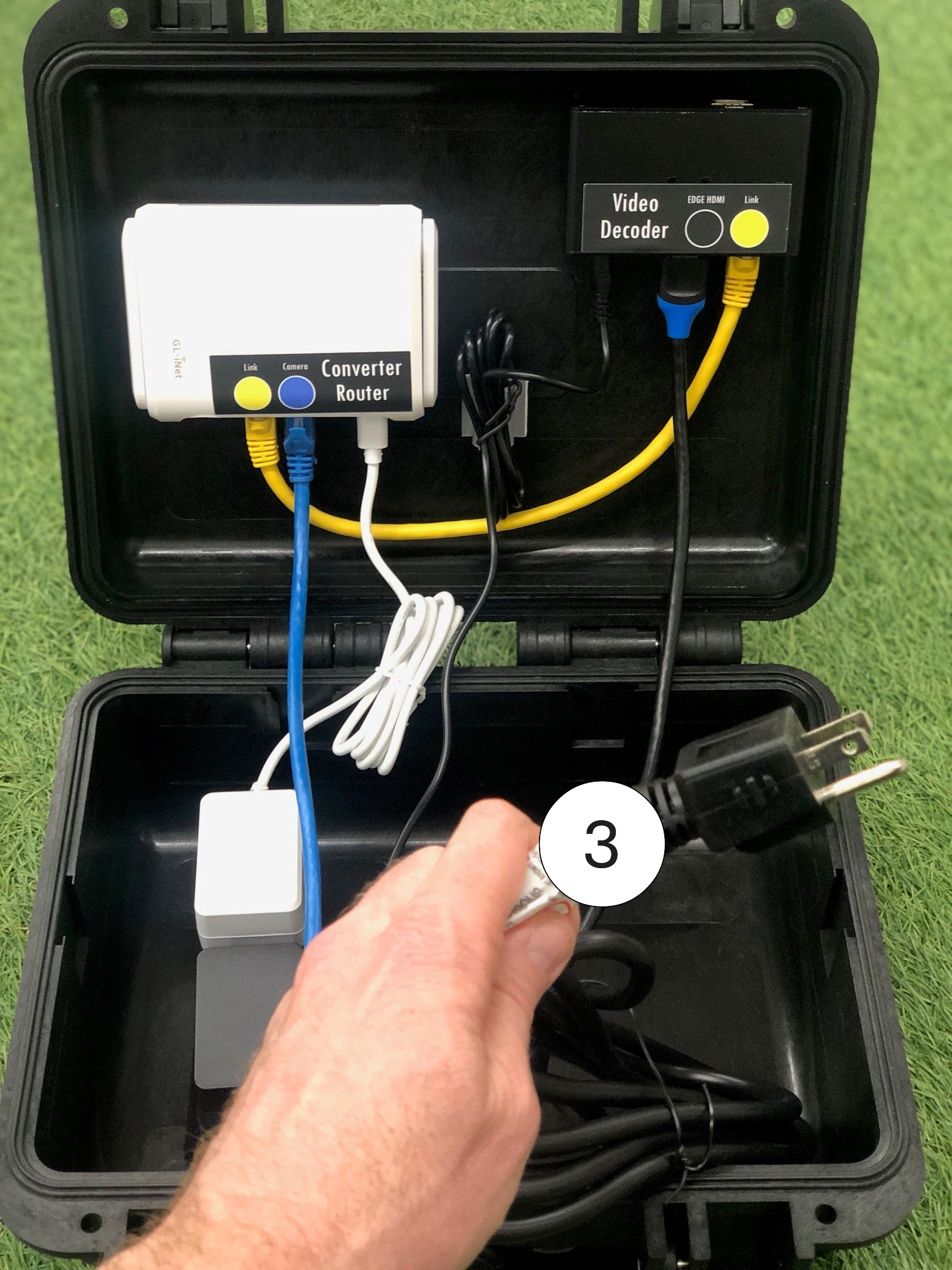

Connect the power strip to an available outlet in the pressbox to power on the devices.
Allow some time for the devices to fully boot up.
If you already had the power plugged in, it does not need to be restarted, the order here doesn't matter.

Double Check the Sport Scope and Hudl Apps

The pressbox EDGE camera angle should show as Ready on the Cameras page in the Sport Scope app.

NOTE: The Focus will not output a video until a recording is started in the Focus App.

Step 4: Start a New Game in the Sport Scope App

Once a recording is started from the Focus App, start a Game in the Sport Scope app and record a few test clips.
You should be able to watch replays of the test clips and view the Focus footage.

Disclaimer: There will be a slight delay between what is happening live and the Focus output video. Be sure to start the recordings of your plays from the Sport Scope app slightly early before the play begins to account for the delay.
