New 2.0 Smart/Wireless (grey):
Tighten the Tilt Motor Clamp:

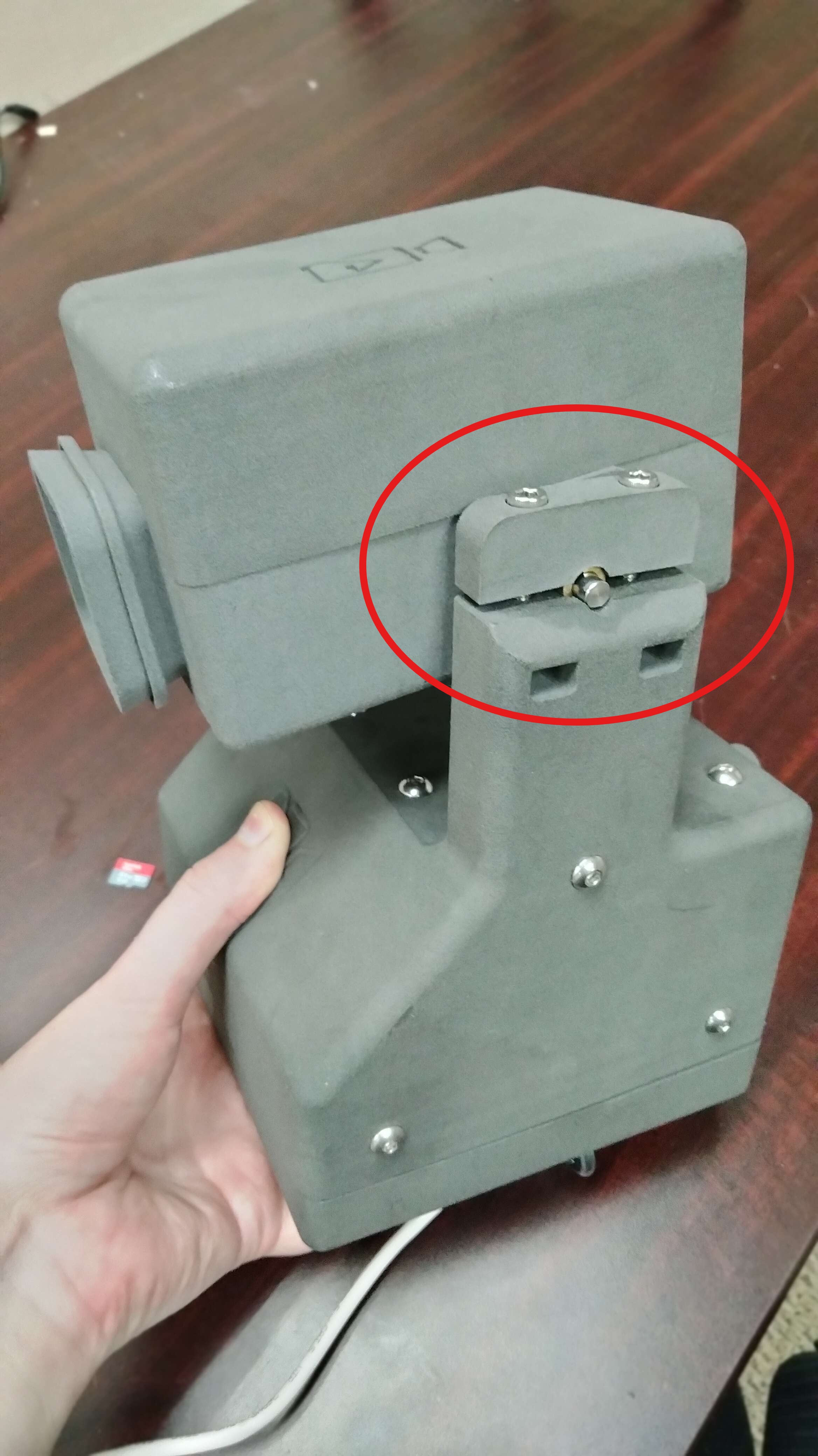

In most cases, the reason the Wireless Head is no longer tilting up and down or is getting stuck is because the part gripping the tilt motor shaft is not tight enough:

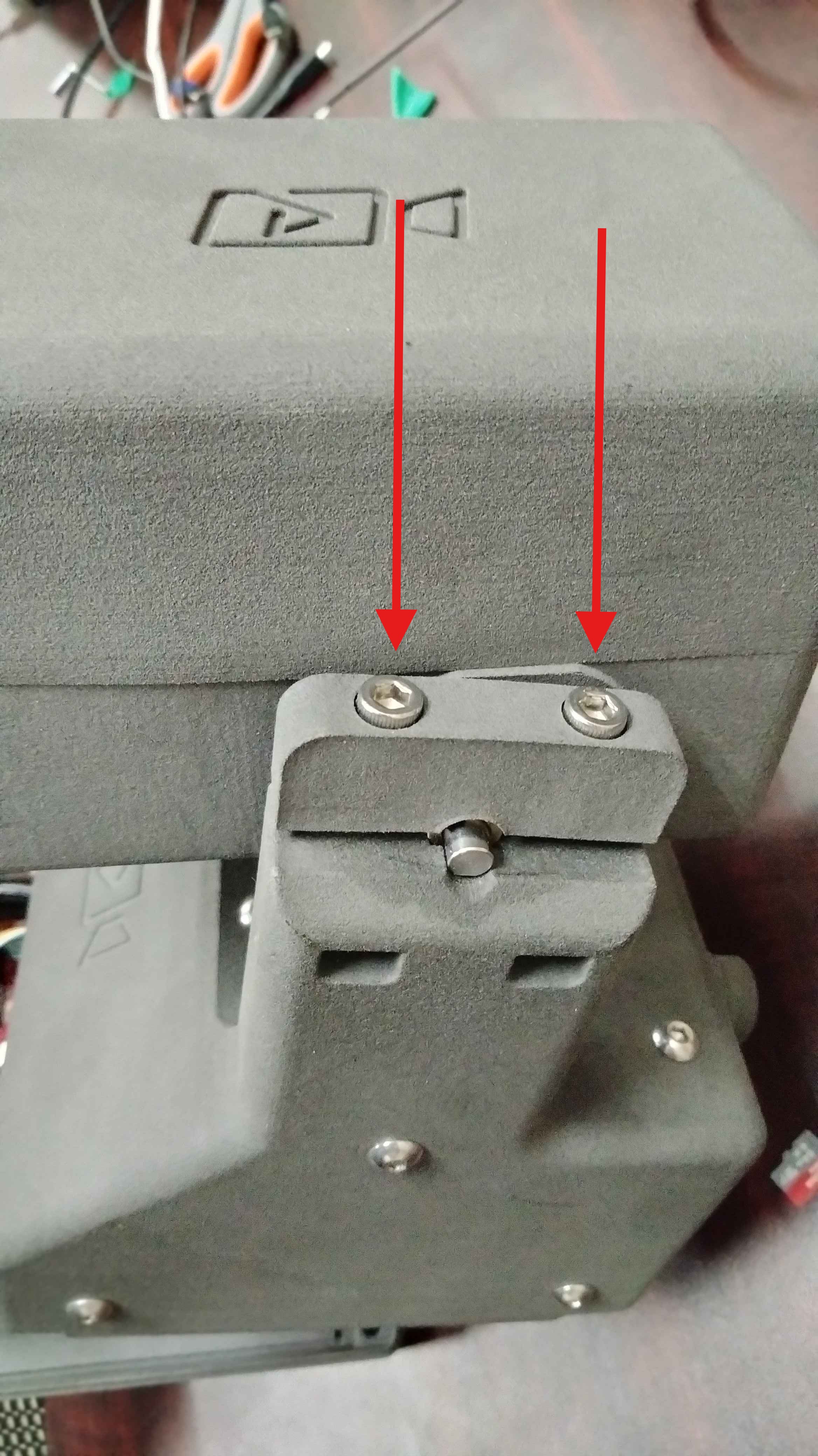

- Locate the hex screws that controls the tightness of the clamp that tightens on the motor shaft
- Use a 3/16" Allen wrench to tighten both of them by a 1/4 turn and then test the tilt function with the iPad:
- It's important to tighten both screws a little at a time and make sure that you don't tight one more than the other!
DO NOT OVER TIGHTEN!
-This will damage the clamp.
- If the tilt is still not working have someone LISTEN to the Wireless Head while the tilt function on the iPad is pressed.
- If there is a consistent motor sound then this most likely means the screw needs to be tighter. Tighten the hex screw another 1/4 turn and test again.
- If after several turns and the bottom tips of the side-wing are about to touch and the tilt is still not working then this could mean that the side-wing has been compromised. Call Sport Scope Support for assistance: 509-204-3270.
Original Smart/Wireless 1.0 (blue):
Tighten the Tilt Motor Shaft Screw:
In most cases, the reason the Wireless Head is no longer tilting up and down is because the slot gripping the tilt motor shaft is not tight enough:
- Locate the hex screw and square nut that controls the tightness of the wing around the motor shaft.

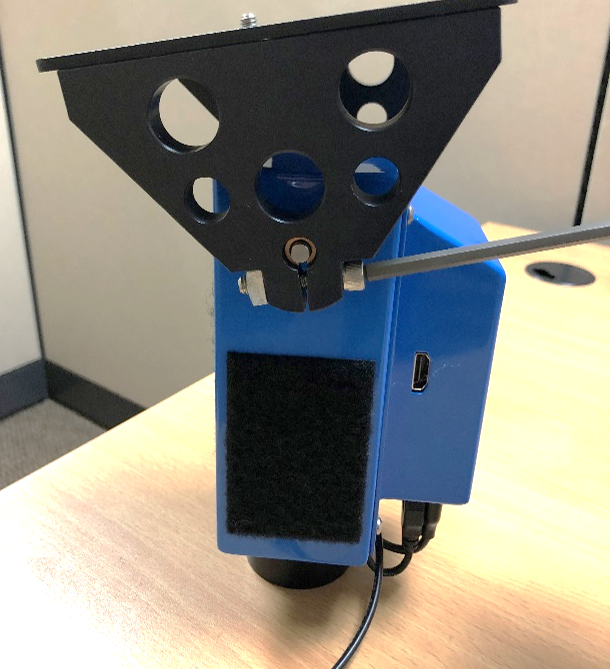

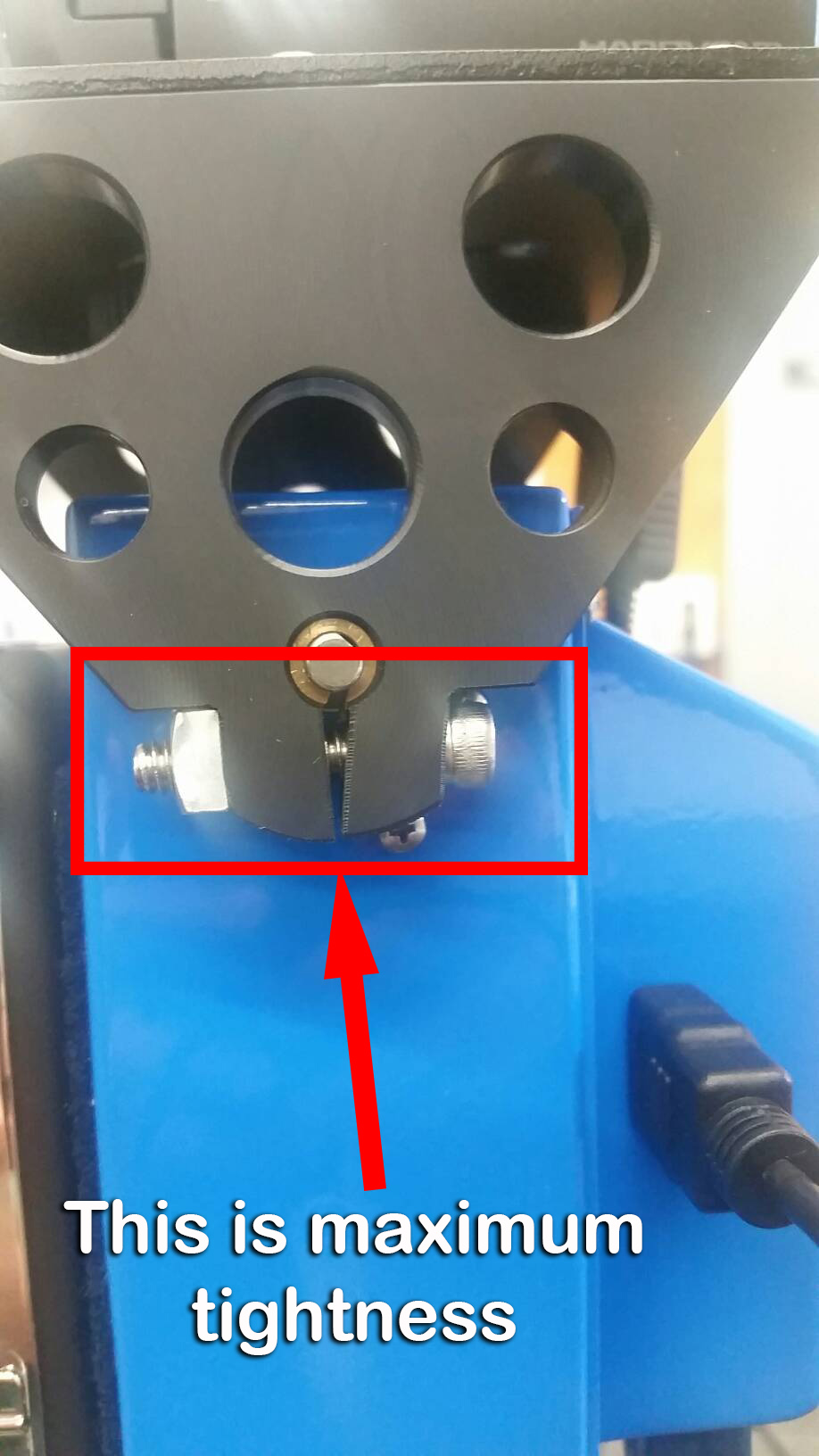

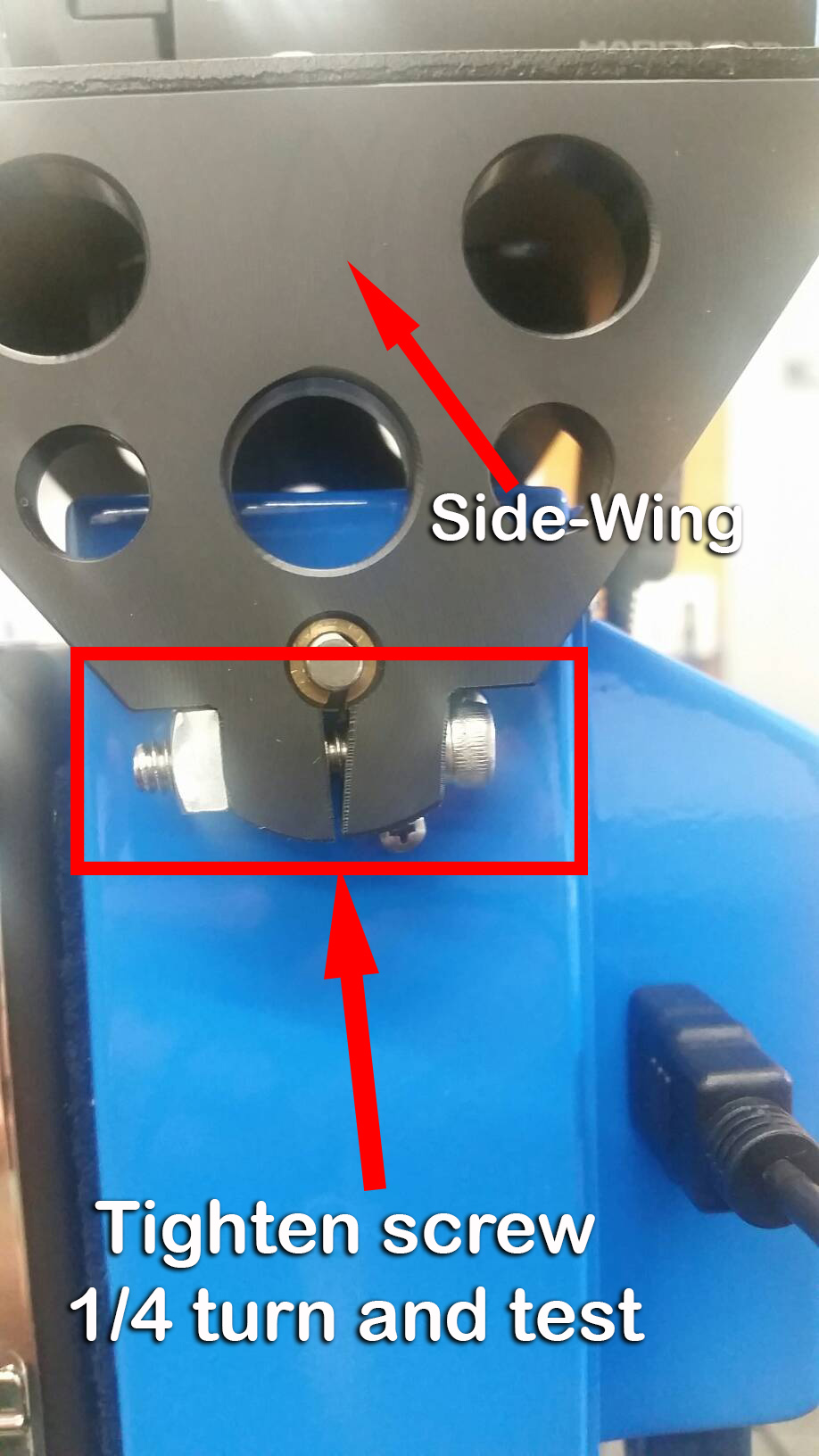

- Use a 3/16" Allen wrench to tighten by a 1/4 turn and then test the tilt function with the iPad:
- If the tilt is still not working have someone LISTEN to the Wireless Head while the tilt function on the iPad is pressed.
- If there is a consistent motor sound then this most likely means the screw needs to be tighter. Tighten the hex screw another 1/4 turn and test again.
- If after several turns and the bottom tips of the side-wing are about to touch and the tilt is still not working then this could mean that the side-wing has been compromised. Call Sport Scope Support for assistance: 509-204-3270.
